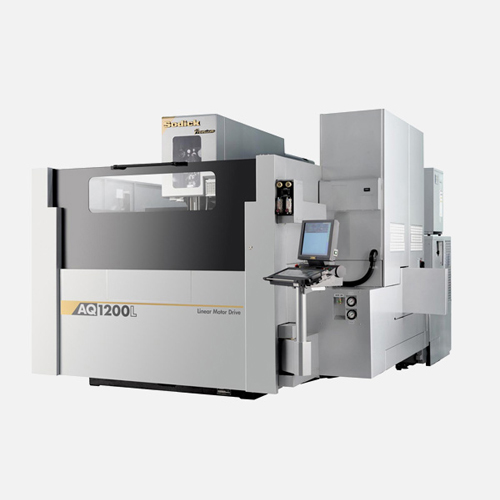

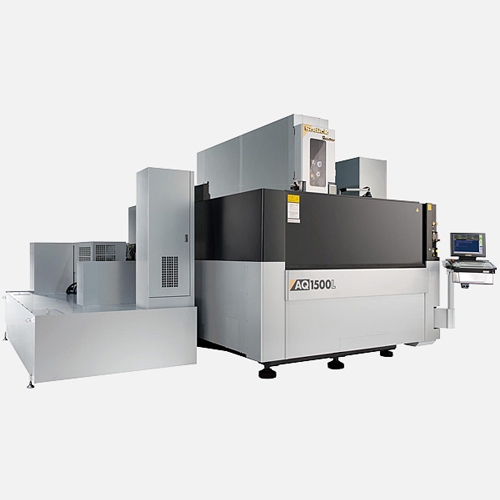

Wire-cut EDM Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM

Wire-cut EDM Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM
  • Wire-cut EDM Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM
  • Wire-cut EDM Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM
Product Name : Wire-cut EDM Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM
Product No : AQ1200L-AQ1500L
Product Description

Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation

Inquiry
Product Introduction

Main Features

Direct-drive & Integrated structure

Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.

New power supply unit

The new power supply unit employs Sodick's 5th generation “Perfect Active Control” EDM technology. In addition, the 1GB/sec serial communication data rate makes simultaneous high-speed processing of both discharge control and motion control possible.

Ultra-high speed AWT

The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.

Product Specifications

  AQ1200LAQ1500L
Axis strokeX x Y x Z (mm) 1200×800×400 1500×1000×600
U x V axis travel(mm) 1220×820 1520×1020
Max. taper angle ±30°
(thickness：150mm)		 ±30°
(thickness：150mm)
Max. machining sizeW x D x H (mm) 1600×1200×400 1900×950×600
Max. weight of workpiece(kg) 4000 8000
Machine tool dimensionsW x D x H (mm) 4100×3870×2490 5600×4435×2930
