Linear Motor Drive High speed Die-sinker EDM

Linear Motor Drive High speed Die-sinker EDMLinear Motor Drive High speed Die-sinker EDM
  • Linear Motor Drive High speed Die-sinker EDMLinear Motor Drive High speed Die-sinker EDM
  • Linear Motor Drive High speed Die-sinker EDM
Product Name : Linear Motor Drive High speed Die-sinker EDM

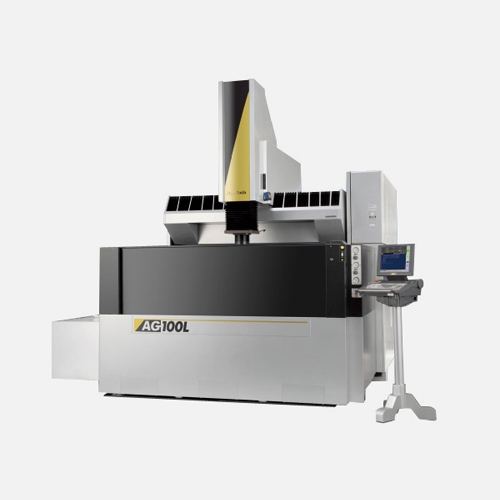

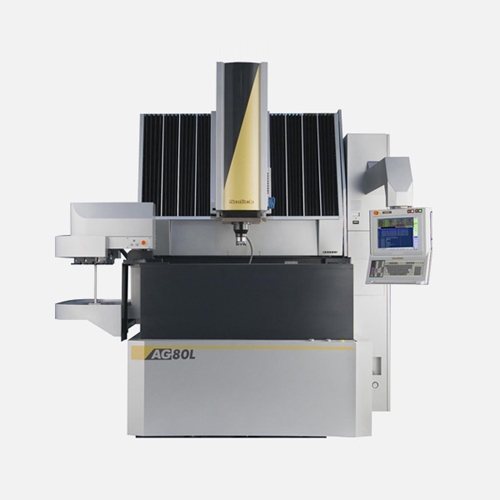

Product No : AG80L-AG100L
Product Description

Best selling Die-sinker EDM which realizes high-speed and high-performance by screw-less drive and arc-less machining

Inquiry
Product Introduction

Main Features

Linear Motor Drive System

Linear motor drive system is the most ideal mechanism which semi-permanently sustains high-speed axis-movements and instantaneous response. With 10-years of history providing linear motor-driven machines, Sodick offers 10-years of positioning accuracy guarantee on its linear motors for the first time ever in EDM industry.

New Generator

The 5th generation electrical discharge technology has adopted the "Perfect Active Control," enabling simultaneous control of high-speed electrical discharge and axis-movements by using serial communication technology of 1Gbit/sec.

Arc-less & High Quality Surface Finish

The new "Arc-less" electrical discharge system features further improved in machining performance, and ensures great reduction in machining time.

Equipped with "SVC" circuit as standard, high-quality surface finishing, satin surface, and mirror surface can be achieved with great ease.

Product Specifications



  AG80LAG100L
Axis strokeX x Y x Z (mm) 850×520×420 1200×650×500
Max. suspended weight(kg) 100 100
Max. weight of workpiece(kg) 3000 5000
Machine tool dimensionsW x D x H (mm) 2060×3130×2900 3820×4200×3340
