Linear Motor Drive High Speed, High Performance Wire-cut EDM
Product Introduction
Main Features
Linear Motor Drive
Sodick's proprietary high-performance linear motors are adopted for the X, Y, X, and U axes achieving direct drive without the need for ball screws. Linear motor drive maintains accurate axis movement with no backlash semi-permanently, a feature unheard of with conventional ball screws. The high responsiveness and high tracking performance of linear motors ensures accurate positional control and superb discharge characteristics during machining.
New Power Supply and Machining Circuits
Incorporating a 19-inch multi-touch LCD-type CNC unit which achieves smart phone-like operability as a standard feature in the SPW power supply Also overwhelming processing speed is achieved through the high-speed dual-core processor.
What’s more, the newly developed Digital PIKA circuit and new barrel effect free control offer high speed, high accuracy, and optimal surface finishing.
Quiet and Clean Full Cover Style

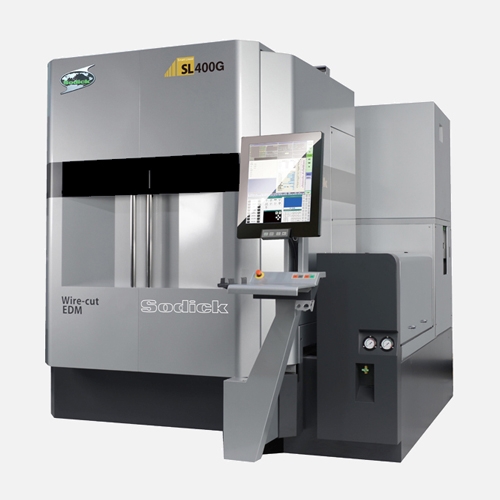

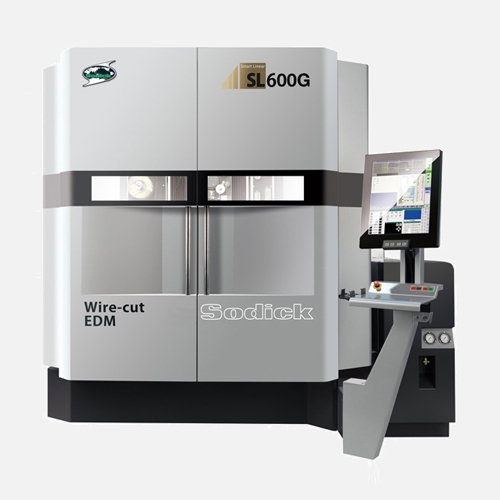

Along with the realization of safety and energy saving characteristic in the SL400G/SL600G, the full cover style which minimizes the effects on the local environment is also adopted.
Product Specifications
| SL400G | SL600G | |
|---|---|---|
| Axis strokeX×Y×Z (mm) | 400×300×250 | 600×400×350 |
| U x V axis travel(mm) | 150×150 | 150×150 |
| Max. taper angle | ±25°(thickness：130mm) | ±25°(thickness：130mm) |
| Max. workpiece dimensionsW x D x H (mm) | 600×470×240 (During flushing machining) |
800×570×340 (During flushing machining) |
| Machine tool dimensionsW x D x H (mm) | 2115×2490×2230 | 2495×2885×2345 |
