Thin-Walled Large Light Guide Plate

薄壁大型導光板

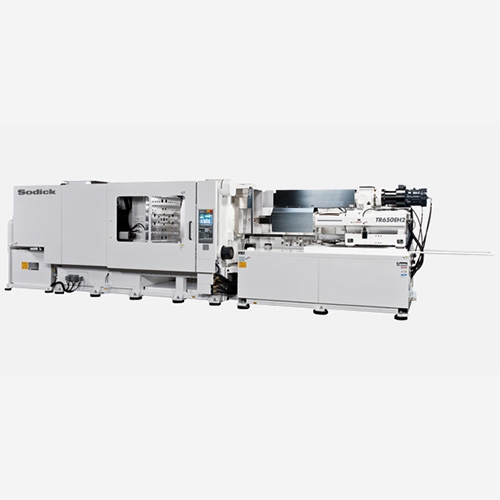

    Product Name : Thin-Walled Large Light Guide Plate
    Product No : TR650EH2
    Product Description

    This machine was developed to form an ultra-accurate, thin-walled large light guide plate for installation into large-screen LCD TVs and lighting equipment. It produces lighter products and helps lower manufacturing costs. Sodick has further advanced its V-LINE® products to meet the needs of the customer.

    Inquiry
    Product Introduction

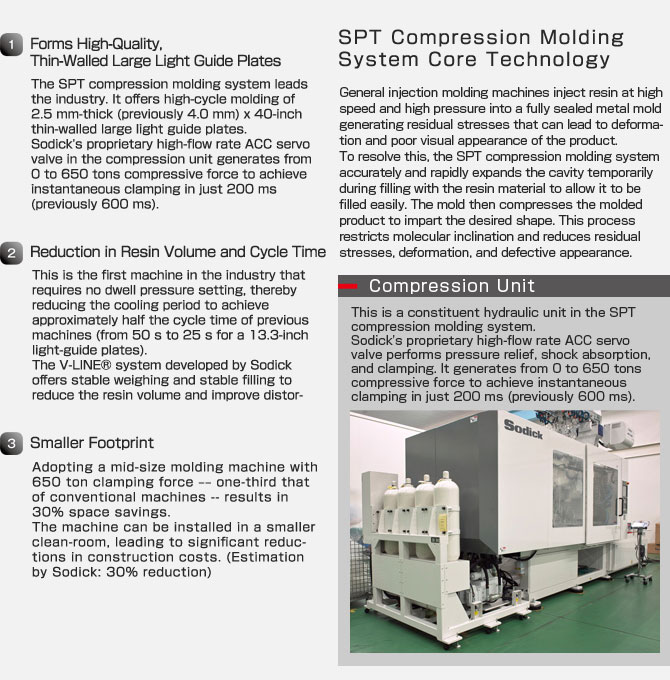

    Main Features

    proimages/product/01/01-1/01-1-4/TR650EH2-3.jpg

    Product Specifications

      TR350/450EH2WTR650EH2
    Max. clamping force(kN) 4410 6374
    Min./max. mold thickness(mm) 400/950 650/1210
    Daylight(mm) 1300 1550
    Tie-bar spacingH×V(mm) 820×820 980×980
    Screw diameter(mm) 50L 80
    Plunger diameter(mm) 50 60 80
    Theoretical injection volume(cm3) 431.8 621 2000
    Max. injection pressure(MPa) 280 197 176
    Max. injection speed(mm/s) 800 300
    Machine weight(kg) 15000 27000
    Machine sizeL×W×H(mm) 7350×1760×2255 9180×2130×2185
