新產品-日本 TRINC 無風靜電消除器

Magnesium Molding

鎂合金

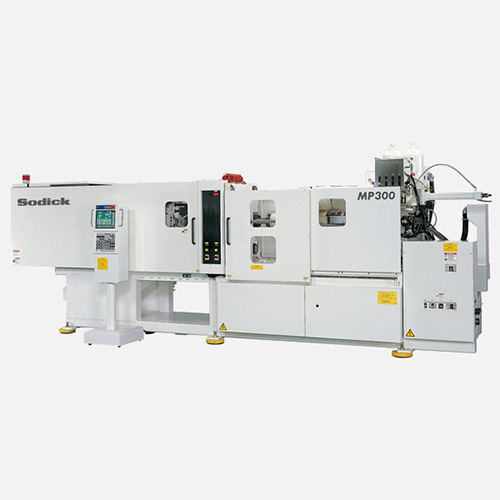

    Product Name : Magnesium Molding
    Product No : MP300
    Product Description

    This is a world’s first new type of molding machine that can handle magnesium alloys. The transition from casting to molding gives birth to a new type of manufacture and it also emphasizes the global and work environments and safety.

    Inquiry

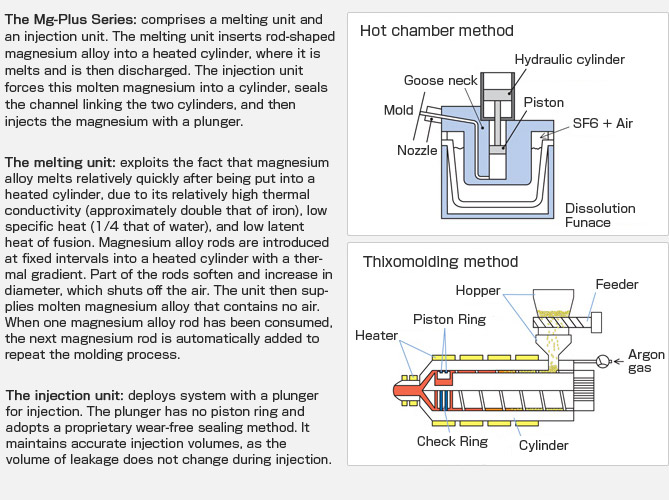

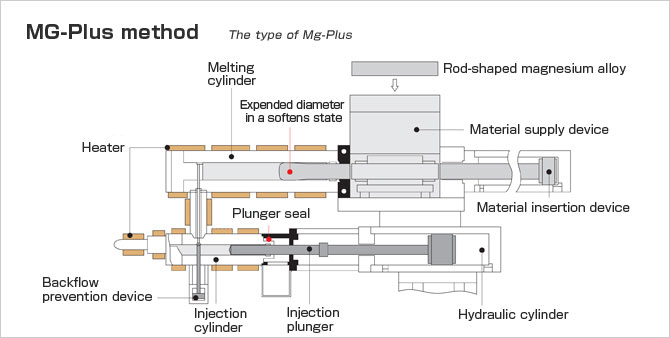

    Product Introduction

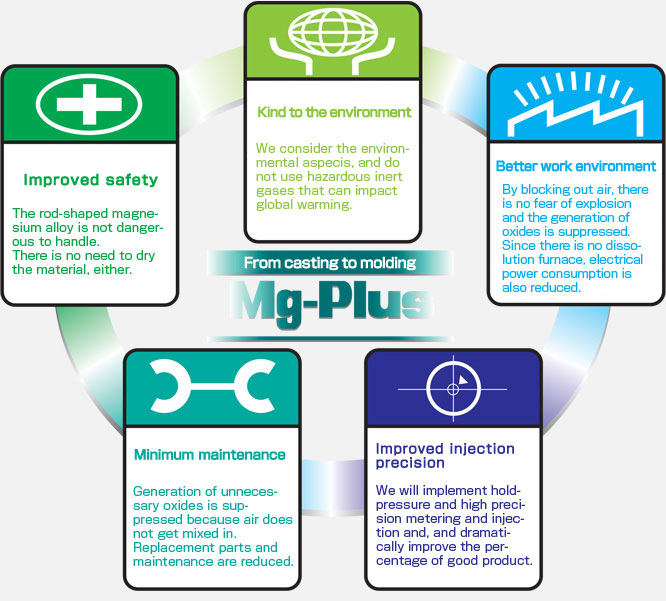

    Main Features

    proimages/product/01/01-1/01-1-4/MP3000-5.jpg

    proimages/product/01/01-1/01-1-4/MP3000-6.jpg

    proimages/product/01/01-1/01-1-4/MP3000-7.jpg

    Product Specifications

      MP300MP450
    Max. clamping force(kN) 2940 4410
    Min./max. mold thickness(mm) 350/700 340/900
    Daylight(mm) 1050 1240
    Tie-bar spacingH×V(mm) 610×610 820×820
    Mg material diameter(mm) 60 90 120
    Plunger diameter(mm) 60 90 120
    Theoretical injection volume(cm3) 282.6 826 1810
    Max. injection pressure(MPa) 60 50 40
    Max. injection speed(mm/s) 2500 5000 3000
    Machine weight(kg) 10000 21000
    Machine sizeL×W×H(mm) 6079×1625×2190 9440(Including separate heater control box)×1965×2575
