  6. GL60-LSR

Horizontal/Vertical

臥式
    Product Name : Horizontal/Vertical
    Product No : GL60-LSR
    Inquiry
    Product Introduction

    Main Features

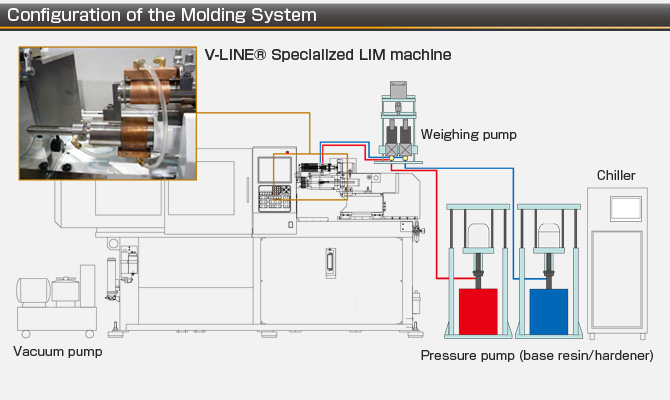

    proimages/product/01/01-1/01-1-3/GL60-LSR-4.jpg

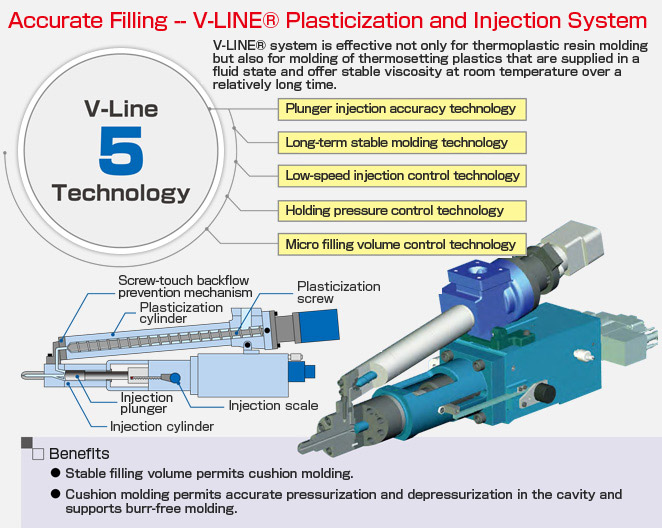

    proimages/product/01/01-1/01-1-3/GL60-LSR-5.jpg





    For detailed specifications, please contact us.



      LS40EHVLS40VRE
    Applicable material viscosity(Pa・s) 100～（Medium, high viscosity） 100～（Medium, high viscosity）
    Min./max. mold thickness(kN) 392 392
    Min./max. mold thickness(mm) 250/- 200/-
    Daylight(mm) 500 400
    Table dimensionsDiameter(mm) - 1016
    Max. mold sizeL×W(mm) - 300×300
    Tie-bar spacingH x V(mm) 360×360 -
    Feed screw diameter(mm) 14 22 28 14 22 28
    Plunger diameter(mm) 16 22 28 16 22 28
    Theoretical injection volume(cm3) 14 27 83 14 27 83
    Max. injection pressure(MPa) 262 256 252 262 256 252
    Max. injection speed(mm/s) 200 200
    Machine weight(kg) 3000 3200 3300 3500
    Machine sizeL×W×H(mm) 2210×1680×3175 2418×1398×2617 2418×
    1406×
    2360
